Models and Material Options
Listed core pairings are initial sourcing references. Confirm the complete assembly with drawings or samples.
BF1601
Female-thread brass shell listed with the NX1650 core series. Confirm the shell-to-core dimensions.
| Thread | F16×1 |
|---|---|
| Connection | Female |
| Material | Brass |
| Finish | Natural brass |

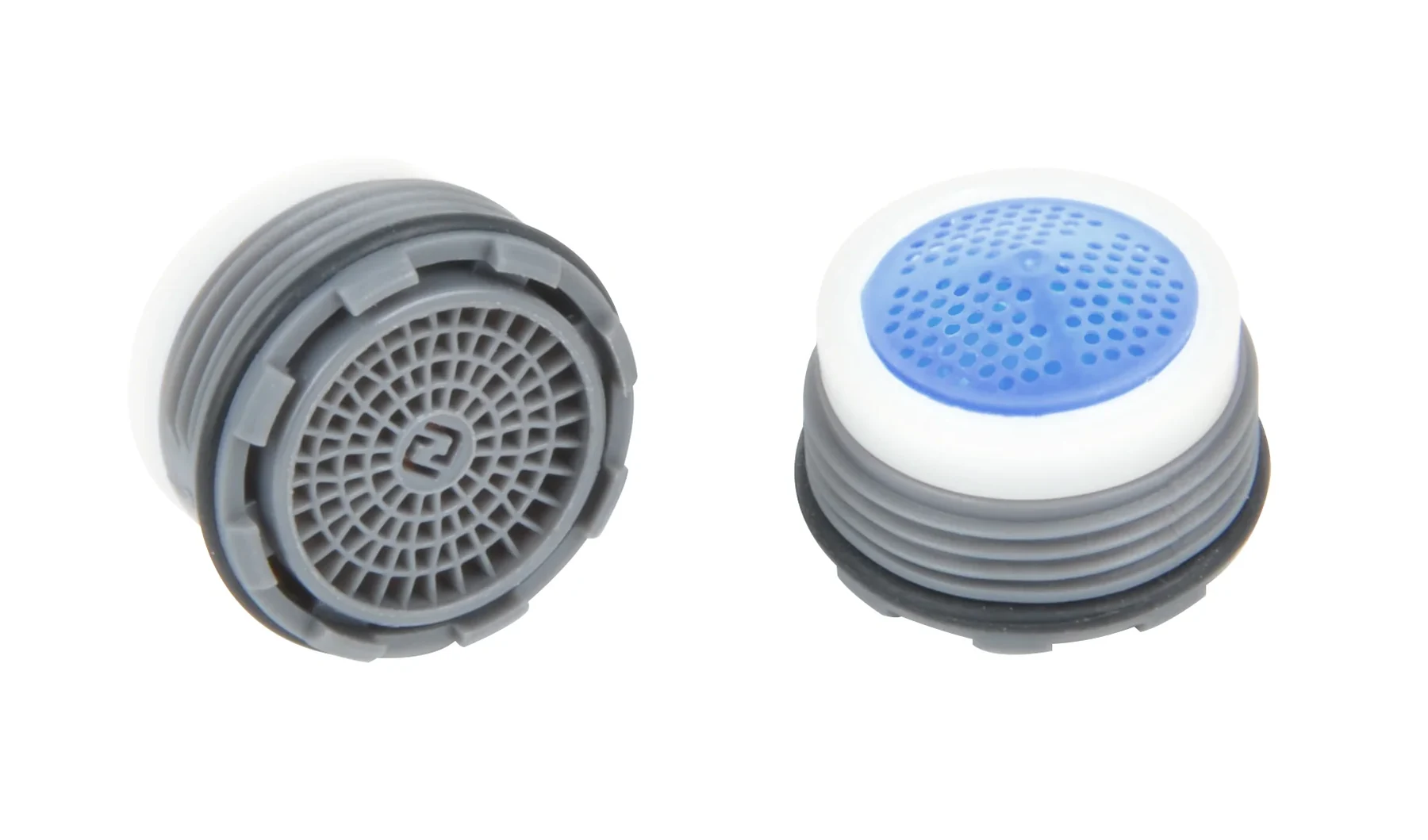

| Listed pairing | NX1650 |

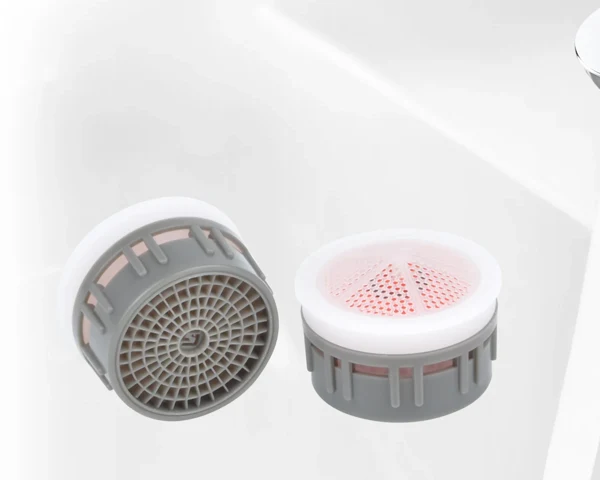

Related aerator core
Listed pairing; confirm version and assembly before ordering.
Selection and Applications
Identify the outlet thread and male or female connection first. Then compare the core, seal, installation space and shell material.
Kitchen, basin and bathtub applications cannot be determined from the shell alone. Test the assembled stream pattern, flow and installation under the relevant operating conditions.
For imperial-thread projects, provide the full thread designation and an existing sample. Confirm the orientation and seals at both ends of BU1555.
Assembly note：A shell alone does not set the stream pattern or flow. Confirm the selected core, seal and operating conditions.

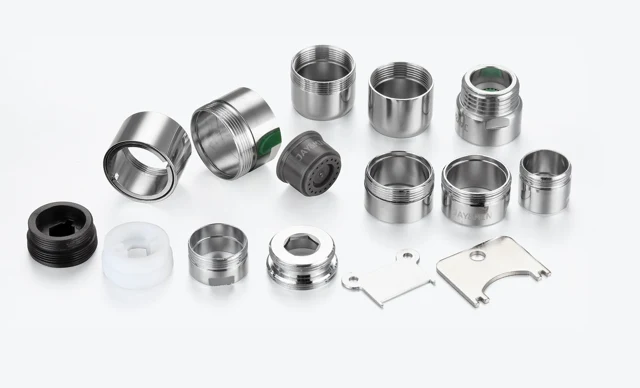

Related Products
Common Questions
Can brass and SS304 shells with the same thread be interchanged?
The thread alone is not enough. Check the core seat, seal, outer dimensions and installation space before substituting one shell for another.
Is the flow range in a shell sheet a guaranteed finished-product flow?
No. Finished flow depends on the corresponding core, supply pressure and complete water path. Share target flow and test conditions for review.
Can the shell be purchased separately?
Tell us whether you need the shell alone, a corresponding core or a complete assembled aerator. Confirm the available supply scope for the project.
Can an imperial shell be replaced by one with a similar diameter?
No. Check the full imperial thread designation, male or female connection, seal position and installation depth. Provide a sample when needed.

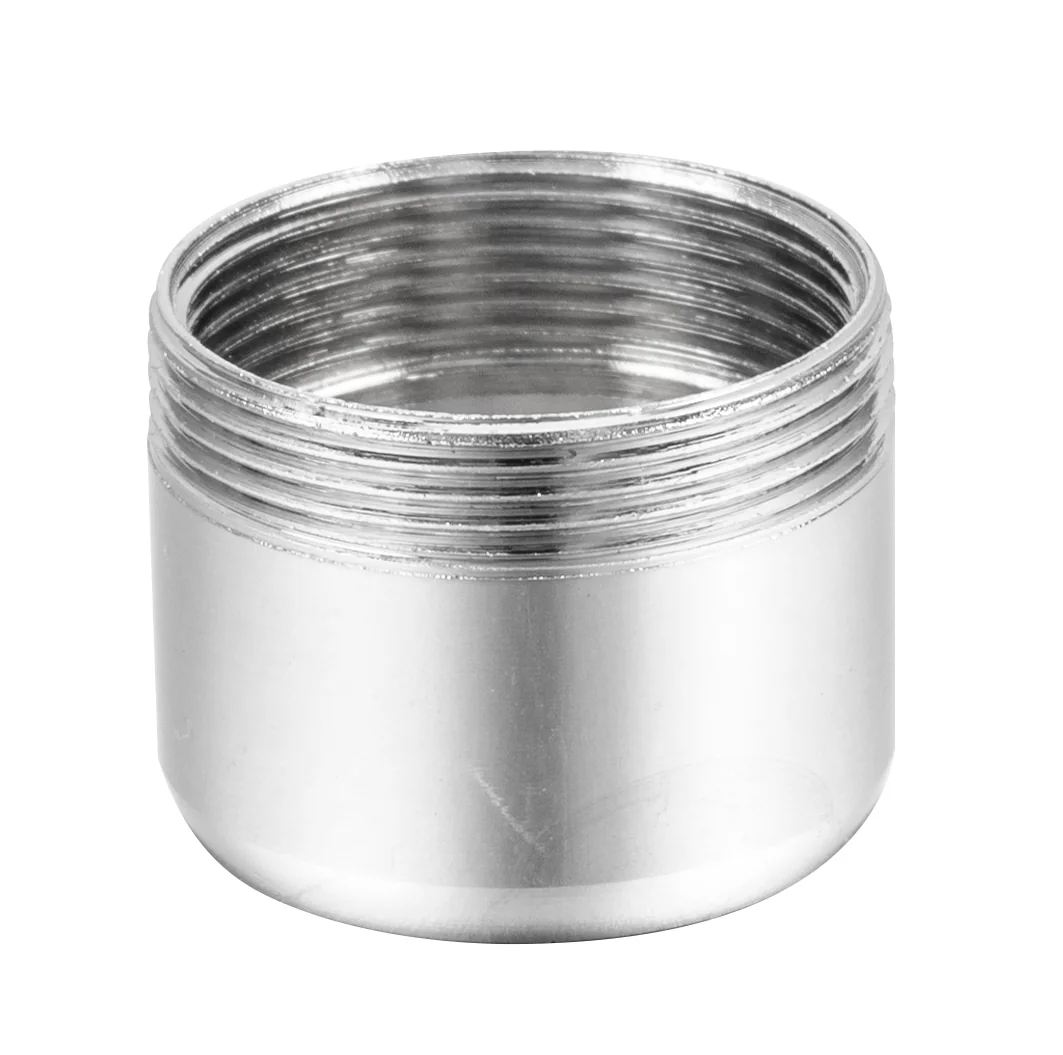

How are the two ends of BU1555 connected?
The sheet identifies one male and one female end. Confirm orientation, seals and core mounting with project drawings or samples.
Confirm Your Shell and Core Assembly
Send the shell model, faucet outlet thread and installed dimensions, core or sample photo, material requirement, expected quantity and target market. For a complete aerator, include the desired stream pattern and target flow.
