Models, Specifications and Technical Documents
The flow figures represent separate configuration options, not a freely adjustable range for one product. L/min and GPM fields are reproduced separately from the specification sheets and are not assumed to correspond item by item.

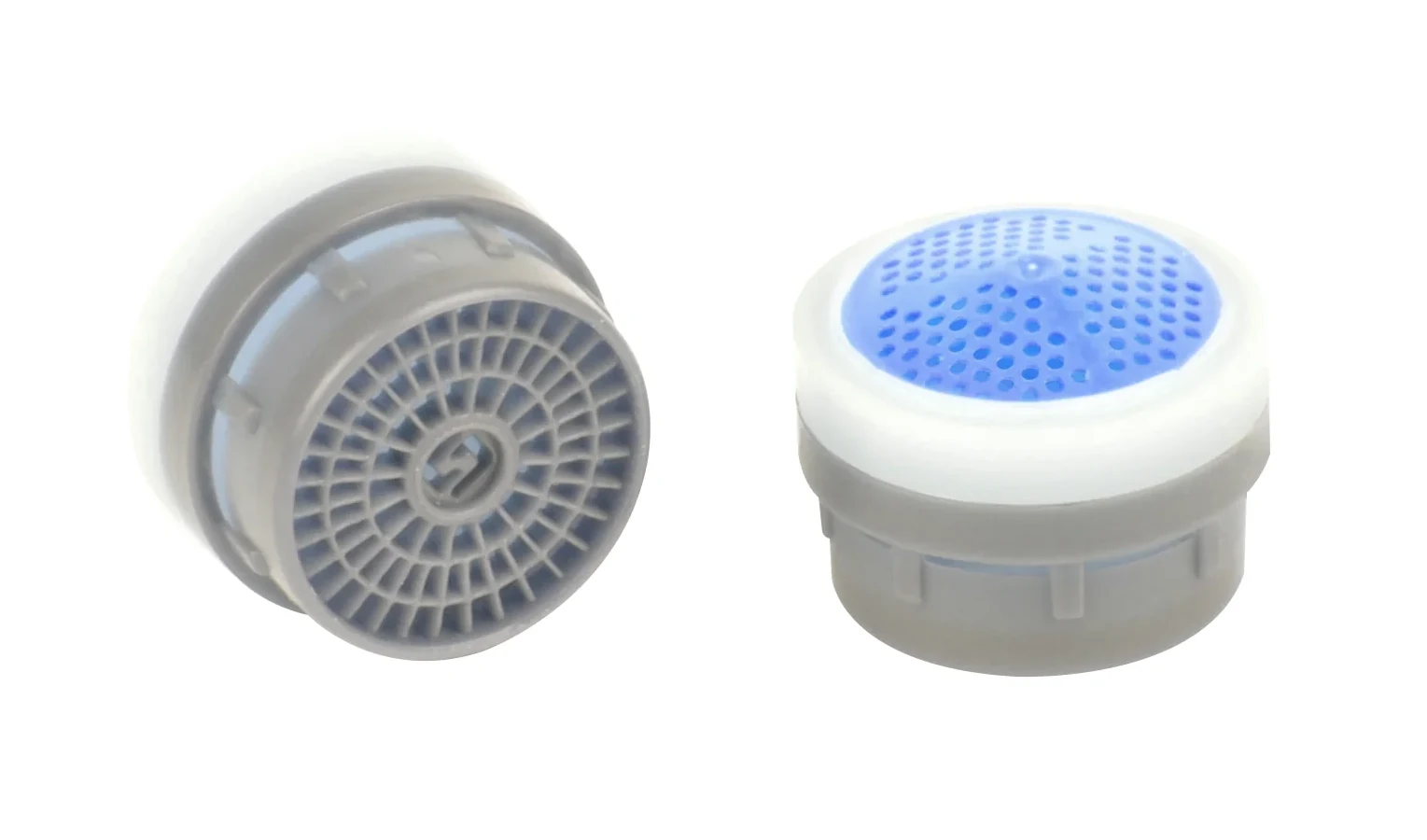

MJ1600
Small-bore plastic aerator core with F16/M18 listed connection, providing 4, 5, 6 and 7 L/min options.
| Model | MJ1600 |
|---|---|
| Product structure | Plastic aerator core |
| Listed connection | F16/M18 |
| Outlet function | Aerated stream |
| Materials | POM / Silicone |
| Listed flow options (L/min) | 4 / 5 / 6 / 7 L/min |
| Listed flow options (GPM) | 1 / 1.2 / 1.5 / 1.8 / 2.2 GPM |
| Operating temperature | 0–55°C |
| Packaging | OEM |
The F16/M18 listing should not be reduced to M18 from the application summary.
Listed Matching Aerator Shells
Applications

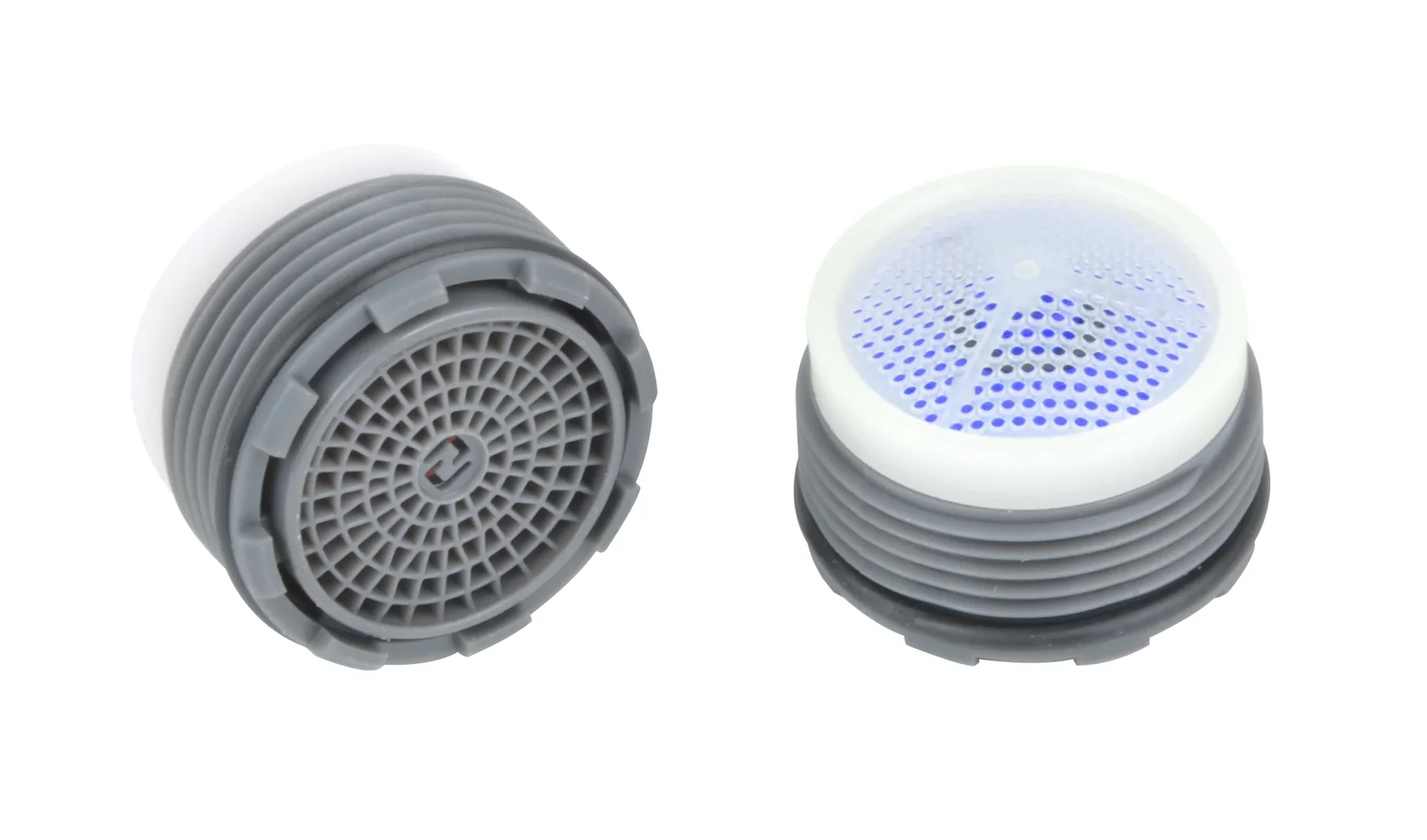

Basin faucets: MJ2000, NX2150, MJ1600 and NX1850 can serve as matching options for different bore sizes.
Small equipment outlets: NX1650, MJ1600 and NX1850 can be discussed for corresponding small-bore matching; actual assembly and operating conditions require confirmation with the equipment.
Certifications and Target Markets
ACS
WaterSense
KTW-BWGL
WaterMark
ACS, WaterSense, KTW-BWGL and WaterMark documents support sourcing review for the corresponding markets. Confirm model, configuration, certificate scope and validity when inquiring.
Related Pages
Frequently Asked Questions
Can this be used at a coffee machine hot water outlet?
Check the actual operating temperature first. This group lists 0–55°C; applications beyond that range require confirmation of a suitable product and test basis.
Can we source a target flow configuration with branded packaging?
Provide the model, target flow, expected quantity and packaging requirements to confirm existing configurations and OEM packaging options. Available versions, samples and order terms are subject to project confirmation.
How should we choose between small-size models?
Check the listed connection, core cavity and installation depth first. Then compare application, flow configuration and operating temperature requirements.
Can similar-looking small cores be interchanged?
Appearance alone is not enough. Confirm the thread, core seat and seal position against the actual outlet assembly.
Should the housing and seals be checked together?
Yes. Send photos or drawings of the housing, washer and core so the complete assembly can be reviewed before choosing a model.
Inquiry
Select a Core for Your Faucet Outlet
Share the installation position, preferred model, assembly drawing or product photo, target flow, expected quantity and packaging requirements. If the model is not yet selected, send the existing product information to discuss a suitable direction.
