Models, Specifications and Technical Documents
The flow figures represent separate configuration options, not a freely adjustable range for one product. L/min and GPM fields are reproduced separately from the specification sheets and are not assumed to correspond item by item. Verify the connection designation against the housing, spout and sealing structure. The test pressure will be added after the source discrepancy is resolved.

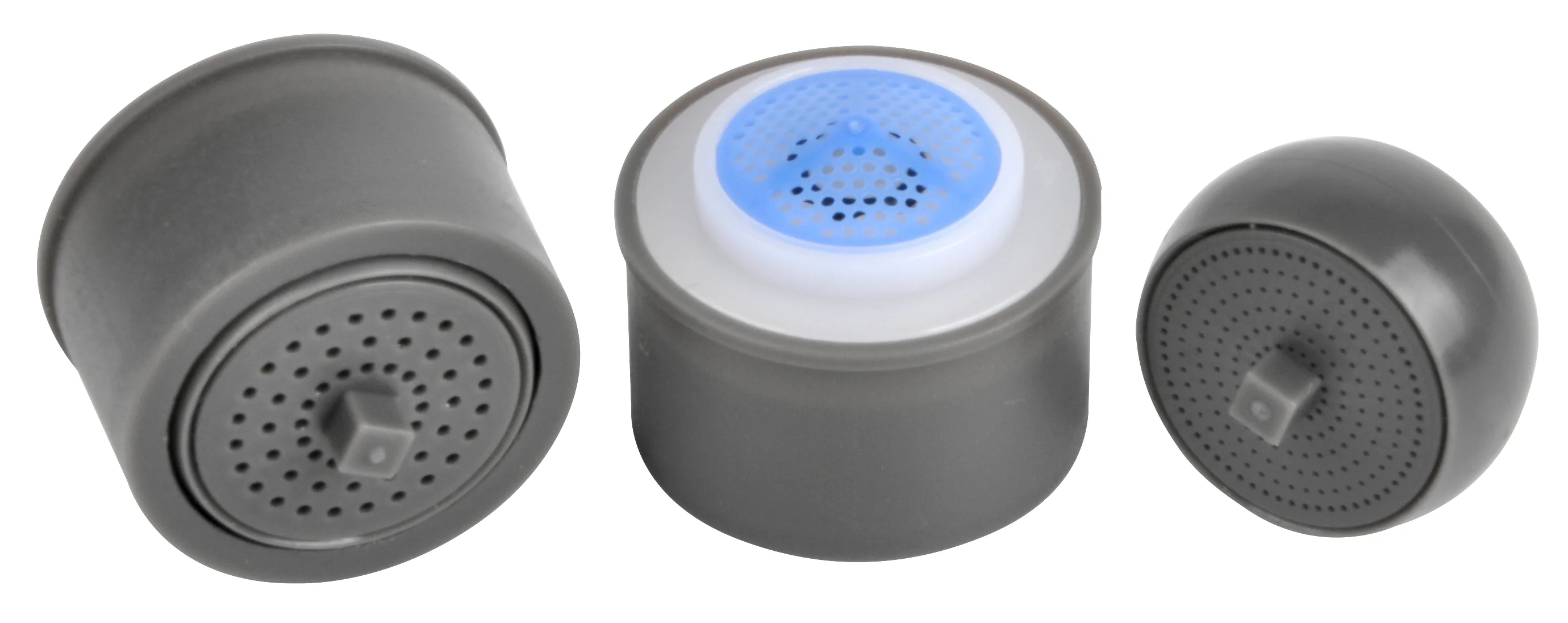

MJ240F.05
Dual-function core providing aerated stream and spray modes, made from POM, silicone and SS304 stainless steel. The listed connection is M24/F22; confirm the mounting relationship.
| Model | MJ240F.05 |
|---|---|
| Product structure | Dual-function threaded aerator core |
| Listed connection | M24/F22 |
| Outlet function | Two modes: aerated stream / shower-style spray |
| Materials | POM / Silicone / SS304 stainless steel |
| Listed flow options (L/min) | 2 / 4 / 5 / 5.5 / 6 / 6.8 / 7 / 8 / 9 / 12 / 18 / 21 L/min |
| Listed flow options (GPM) | 0.5 / 1 / 1.2 / 1.5 / 1.8 / 2.2 / 2.5 GPM |
| Operating temperature | 0–55°C |
| Packaging | OEM |
Confirm the listed M24/F22 mounting relationship against the housing and spout.
Applications
Kitchen pull-out faucet development: match the dual-mode core to the spray head water path and switching structure.
Kitchen faucet range planning: confirm models and versions separately by target flow and the requirements of both stream patterns.
Certifications and Target Markets
ACS
WaterSense
KTW-BWGL
ACS, WaterSense, KTW-BWGL documents support sourcing review for the corresponding markets. Confirm model, configuration, certificate scope and validity when inquiring.
Related Pages
Frequently Asked Questions
Can these cores directly replace multifunctional aerators such as JM6200?
Do not assume direct replacement. These are cores for pull-out faucet assemblies. Compare the mounting structure and operation of complete multifunctional aerators separately.
Can we source a target flow configuration with branded packaging?
Provide the model, target flow, expected quantity and packaging requirements to confirm existing configurations and OEM packaging options. Available versions, samples and order terms are subject to project confirmation.
Can the core alone provide the finished product's switching operation?
Operation also depends on the housing, control mechanism and finished assembly. Review the complete structure before selecting the core.
Are connections and flow configurations interchangeable across models?
Do not assume interchangeability. Use each model drawing to check connections, installation dimensions and the required flow for each stream pattern.
What is needed when adapting an existing product to a dual-function core?
Provide the existing outlet assembly, operating mechanism, connection and clearance, plus the required stream patterns and flow.
Inquiry
Select a Core for Your Faucet Outlet
Share the installation position, preferred model, assembly drawing or product photo, target flow, expected quantity and packaging requirements. If the model is not yet selected, send the existing product information to discuss a suitable direction.
