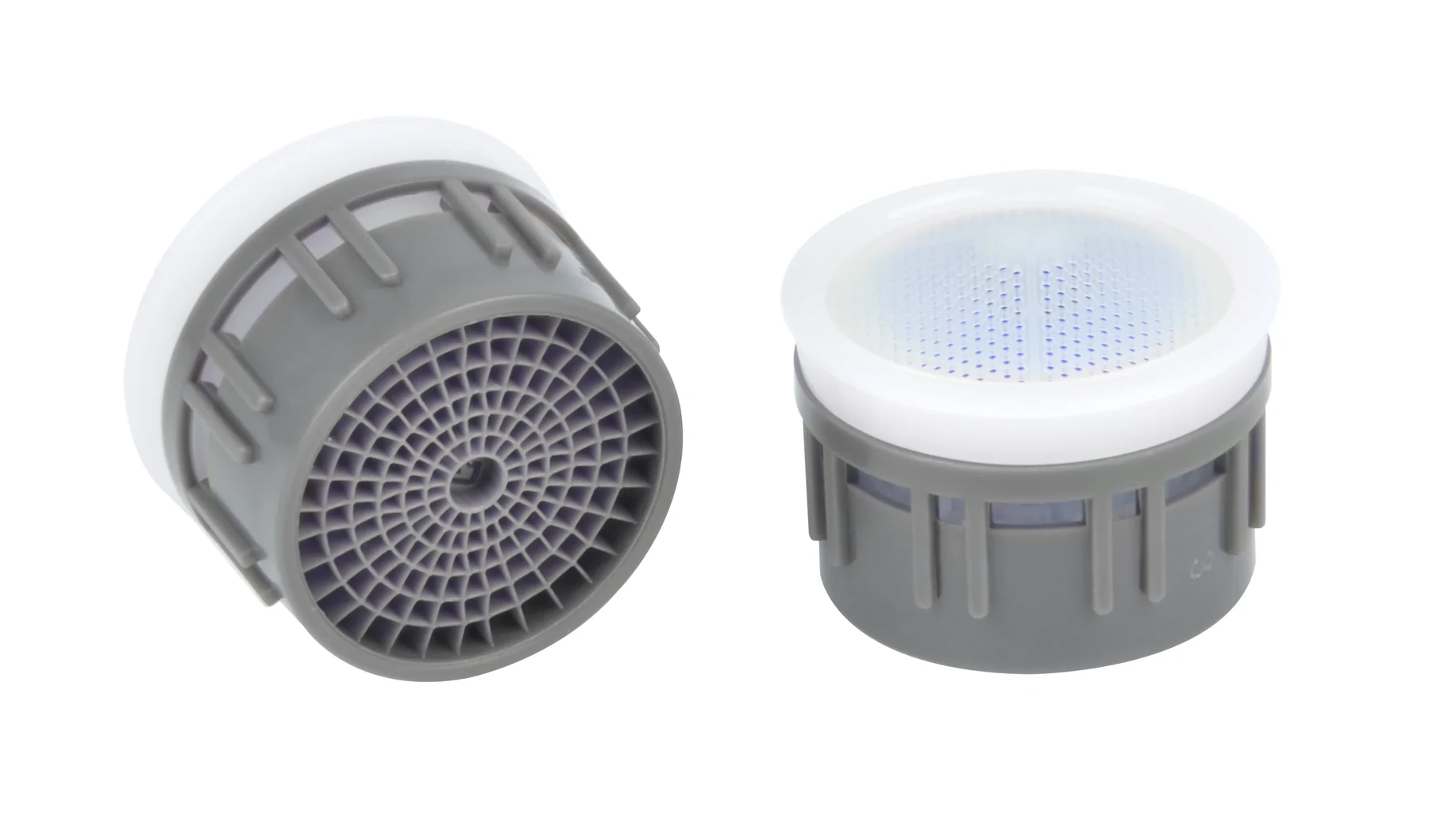

MJ2800
M28 plastic aerator core with listed configurations including 12, 18 and 33 L/min. Select the version for the required flow.
| Model | MJ2800 |
|---|---|
| Product structure | Plastic aerator core |
| Listed connection | M28 |
| Outlet function | Aerated stream |
| Materials | POM / Silicone |
| Listed flow options (L/min) | 2 / 4 / 5 / 5.5 / 6 / 6.8 / 7 / 8 / 9 / 12 / 18 / 33 L/min |
| Listed flow options (GPM) | 0.5 / 1 / 1.2 / 1.5 / 1.8 / 2.2 / 2.5 GPM |
| Operating temperature | 0–55°C |
| Packaging | OEM |
The 33 L/min figure is one listed option, not a guarantee for every MJ2800 core or supply condition.
Listed Matching Aerator Shells
Applications
Bathtub faucet outlets: for designs using the corresponding M28 mounting structure.
Bathtub filling configurations: compare 12, 18 or 33 L/min versions against the water supply and validate the finished faucet performance.
Certifications and Target Markets
ACS
WaterSense
KTW-BWGL
WaterMark
ACS, WaterSense, KTW-BWGL and WaterMark documents support sourcing review for the corresponding markets. Confirm model, configuration, certificate scope and validity when inquiring.
Related Pages
Frequently Asked Questions
Is every MJ2800 rated at 33 L/min?
No. The 33 L/min figure is one option in the specification sheet. Specify the required version during inquiry and sampling, and confirm the test pressure.
Can we source a target flow configuration with branded packaging?
Provide the model, target flow, expected quantity and packaging requirements to confirm existing configurations and OEM packaging options. Available versions, samples and order terms are subject to project confirmation.
Is the M28 designation enough to confirm installation?
M28 is the listed connection information. Also verify the housing, core seat, seals and installation depth.
Does the core alone determine bathtub filling speed?
Filling also depends on the water supply, valve and complete water path. Evaluate the assembled flow under the intended operating conditions.
Can BM2801 be considered as a matching housing?
The shell sheet lists BM2801 with MJ2800. Use the shell link as a sourcing reference and verify the final assembly with drawings or samples.
Inquiry
Select a Core for Your Faucet Outlet
Share the installation position, preferred model, assembly drawing or product photo, target flow, expected quantity and packaging requirements. If the model is not yet selected, send the existing product information to discuss a suitable direction.
