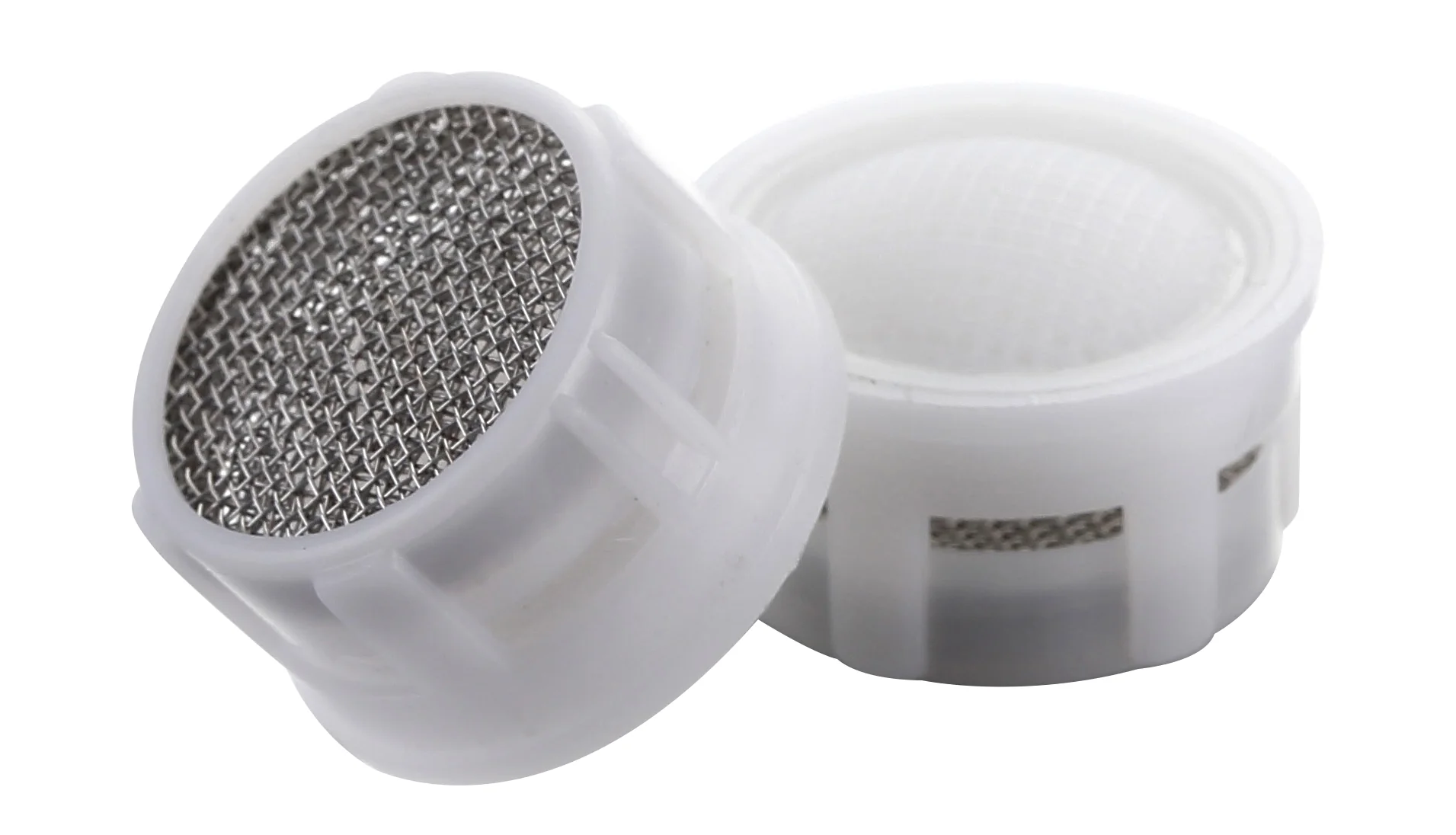

MJ2409
Aerator core using POM and SS304 stainless steel mesh, with multiple flow configurations for aerated faucet outlets.
| Model | MJ2409 |
|---|---|
| Product structure | Stainless steel mesh aerator core |
| Listed connection | M24 & F22, 15/16', 55/64' / 15/16&55/64' |
| Outlet function | Aerated stream |
| Materials | POM / SS304 stainless steel mesh |
| Listed flow options (L/min) | 2 / 4 / 5 / 5.5 / 6 / 6.8 / 7 / 8 / 9 / 12 / 18 L/min |
| Listed flow options (GPM) | 0.5 / 1 / 1.2 / 1.5 / 1.8 / 2.2 / 2.5 GPM |
| Operating temperature | 0–55°C |
| Packaging | OEM |
The SS304 mesh is part of the outlet structure and does not support a water-purification claim.
Applications
Fixed kitchen faucets and corresponding pull-out heads: for outlet assemblies using a mesh core structure.
Existing core replacement evaluation: compare mesh structure, installation dimensions and required flow before confirming samples.
Certifications and Target Markets
ACS
WaterSense
KTW-BWGL
WaterMark
ACS, WaterSense, KTW-BWGL and WaterMark documents support sourcing review for the corresponding markets. Confirm model, configuration, certificate scope and validity when inquiring.
Related Pages
Frequently Asked Questions
Does the stainless steel mesh purify water?
The available information supports a stainless steel mesh structure, not water purification or contaminant removal. Selection should focus on outlet structure and installation requirements.
Can we source a target flow configuration with branded packaging?
Provide the model, target flow, expected quantity and packaging requirements to confirm existing configurations and OEM packaging options. Available versions, samples and order terms are subject to project confirmation.
Does the stainless steel mesh remove the need to check fit?
No. The mesh structure does not establish fit. Check the housing, core seat, seals and faucet outlet dimensions.
How should the required flow configuration be confirmed?
Specify target flow and test pressure. Confirm the selected version with the complete outlet assembly.
Can it replace a plastic core with a similar shape?
Do not select by appearance alone. Check assembly dimensions and seal position using the model drawing, then evaluate the assembled outlet.
Inquiry
Select a Core for Your Faucet Outlet
Share the installation position, preferred model, assembly drawing or product photo, target flow, expected quantity and packaging requirements. If the model is not yet selected, send the existing product information to discuss a suitable direction.
