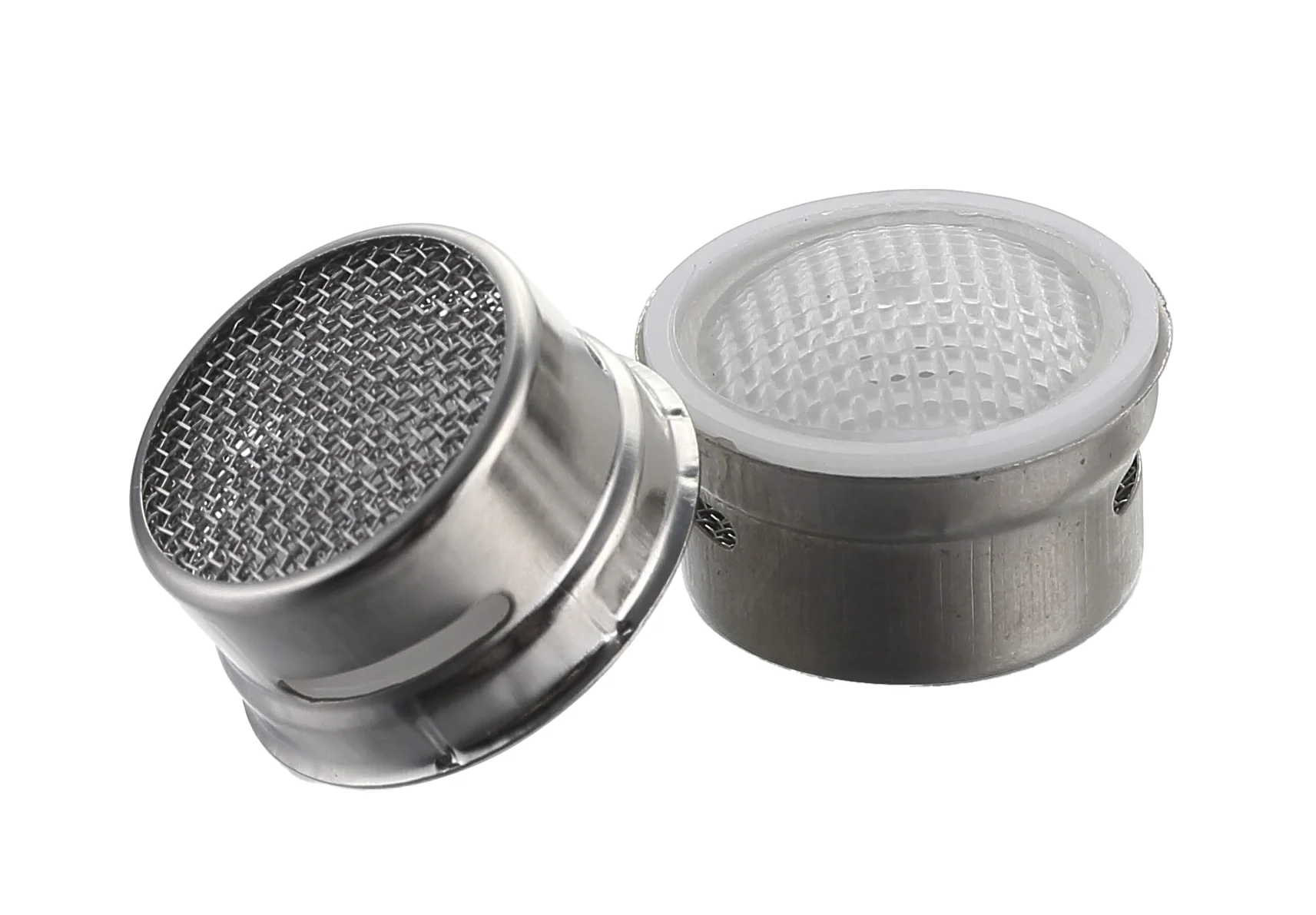

BJ2409
Brass-shell aerator core with materials listed as POM and brass, providing 5 or 7 L/min options.
| Model | BJ2409 |
|---|---|
| Product structure | Brass-shell aerator core |
| Listed connection | M24 & F22, 15/16', 55/64' / 15/16&55/64' |
| Outlet function | Aerated stream |
| Materials | POM / Brass |
| Listed flow options (L/min) | 5 / 7 L/min |
| Listed flow options (GPM) | 1.5 GPM |
| Operating temperature | 0–55°C |
| Packaging | OEM |
The brass-shell structure does not mean the entire product is made of brass; it does not replace the material description of the matching faucet housing.
Applications
Kitchen faucet outlets: for projects requiring a brass-shell core structure.
Mesh and brass-shell structure comparison: can be evaluated together with MJ2409, but materials, configurations and samples should be checked separately.
Certifications and Target Markets
ACS
WaterSense
KTW-BWGL
WaterMark
ACS, WaterSense, KTW-BWGL and WaterMark documents support sourcing review for the corresponding markets. Confirm model, configuration, certificate scope and validity when inquiring.
Related Pages
Frequently Asked Questions
Is BJ2409 an all-brass aerator?
Do not state it that way. The specification sheet lists POM and brass; what can be confirmed is a brass-shell core structure.
Can we source a target flow configuration with branded packaging?
Provide the model, target flow, expected quantity and packaging requirements to confirm existing configurations and OEM packaging options. Available versions, samples and order terms are subject to project confirmation.
How does a brass-shell core differ from a separate brass housing?
BJ2409 is a core product using POM and brass. A separate housing is a mounting component. Confirm which supply scope the project requires.
Are 5 and 7 L/min an adjustable range on one product?
They are listed flow configurations. Select the required version rather than assuming one product can freely adjust between them.
How should fit with an existing faucet be checked?
Send drawings or photos of the outlet, existing housing and seals. Check the mounting structure against BJ2409 model dimensions.
Inquiry
Select a Core for Your Faucet Outlet
Share the installation position, preferred model, assembly drawing or product photo, target flow, expected quantity and packaging requirements. If the model is not yet selected, send the existing product information to discuss a suitable direction.
